Vertical WA4 Series Vertical WB4 Series Horizontal WK Series Vertical WF4 Series High-speed WGT Series Freight elevator traction machine WG series Home Elevator Motor Series

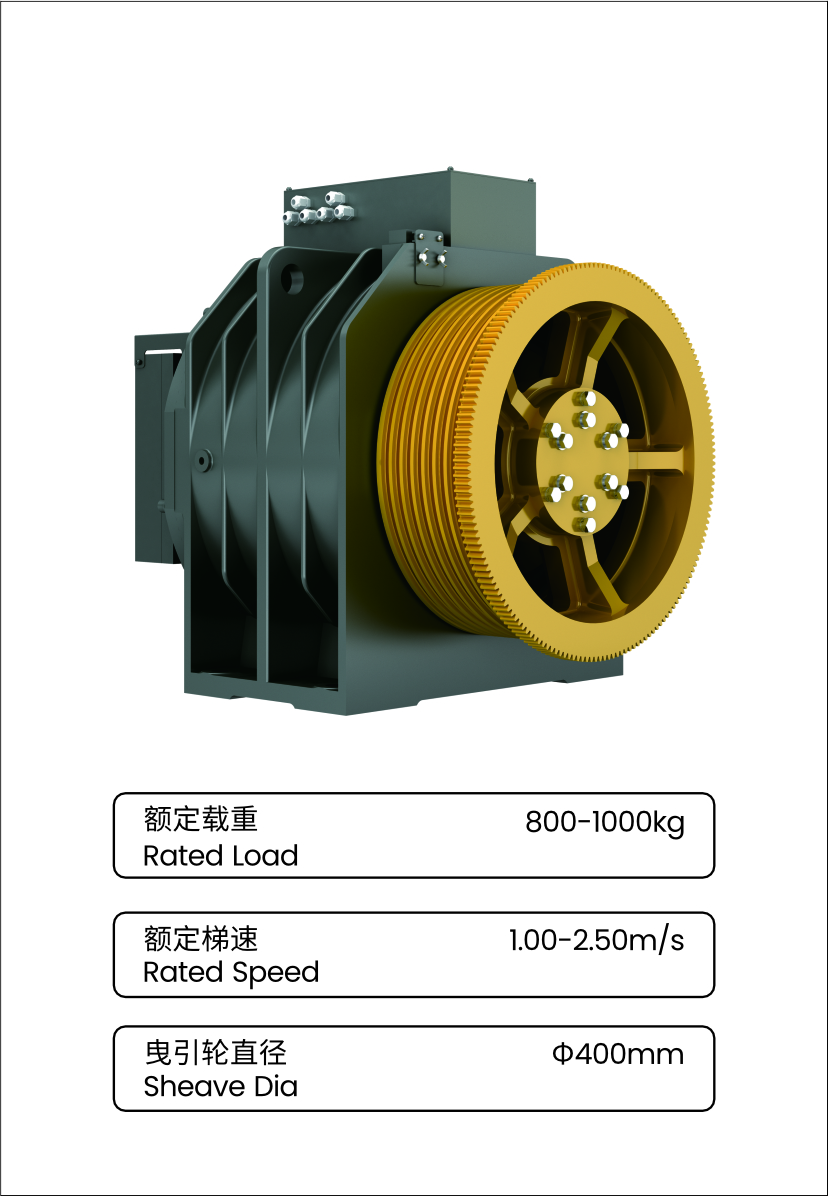

Traction machine-Horizontal WK Series

WK-I（800~1000KG）

WK-I（800~1000KG） WK-II（630~1150KG） WK-III（630KG） WK-IV（1150~1750KG） WK-V（1600/2000KG） WK-VI（2000~2500KG）
Contact Us Download
Maximum radial load

3200N

Estimated weight of traction machine

415kg

Startup frequency (times/hour)

180

Insulation level

F

Brake model and quantity

Two OQN066 Brakes

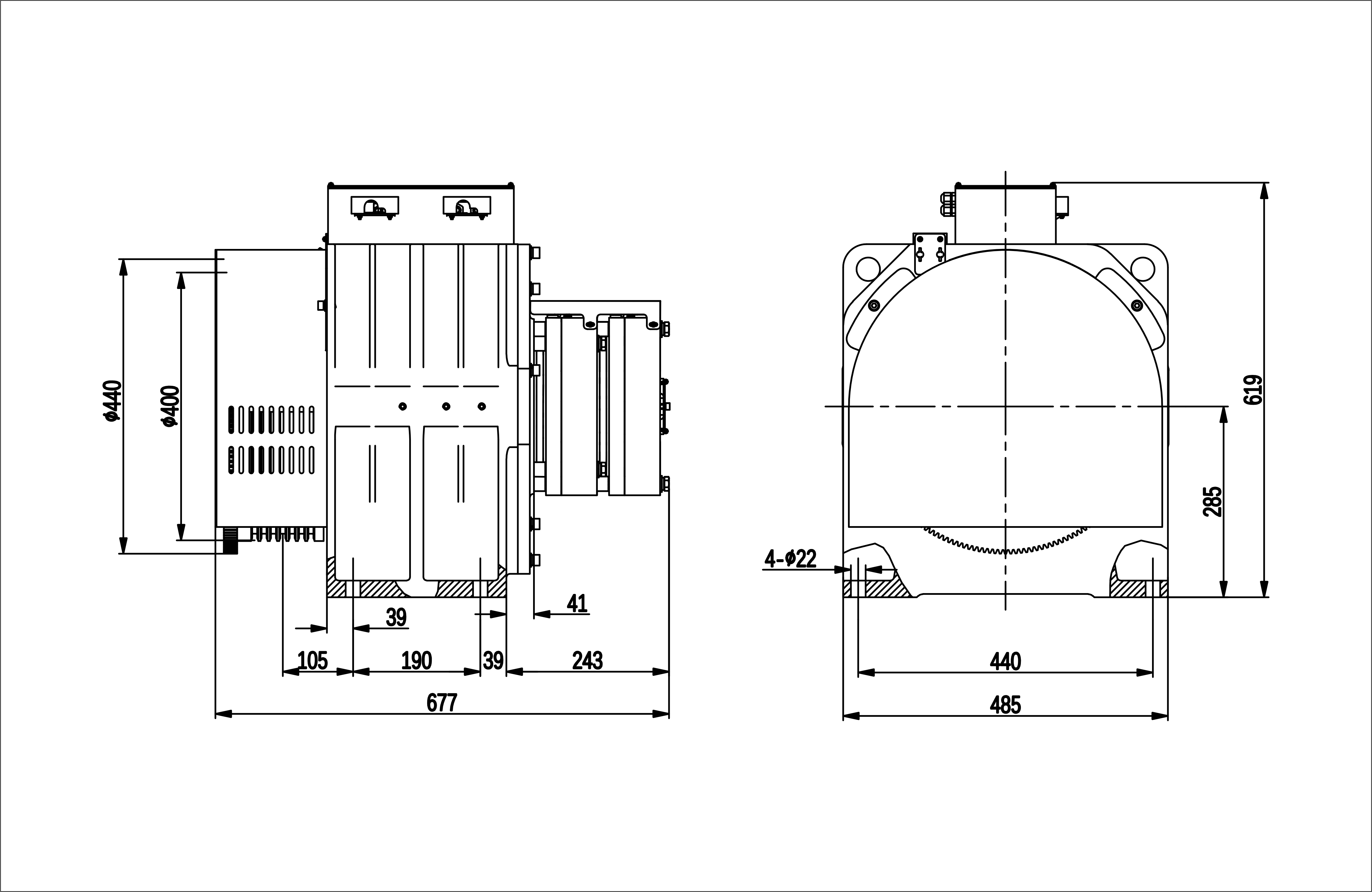

Appearance dimension diagram

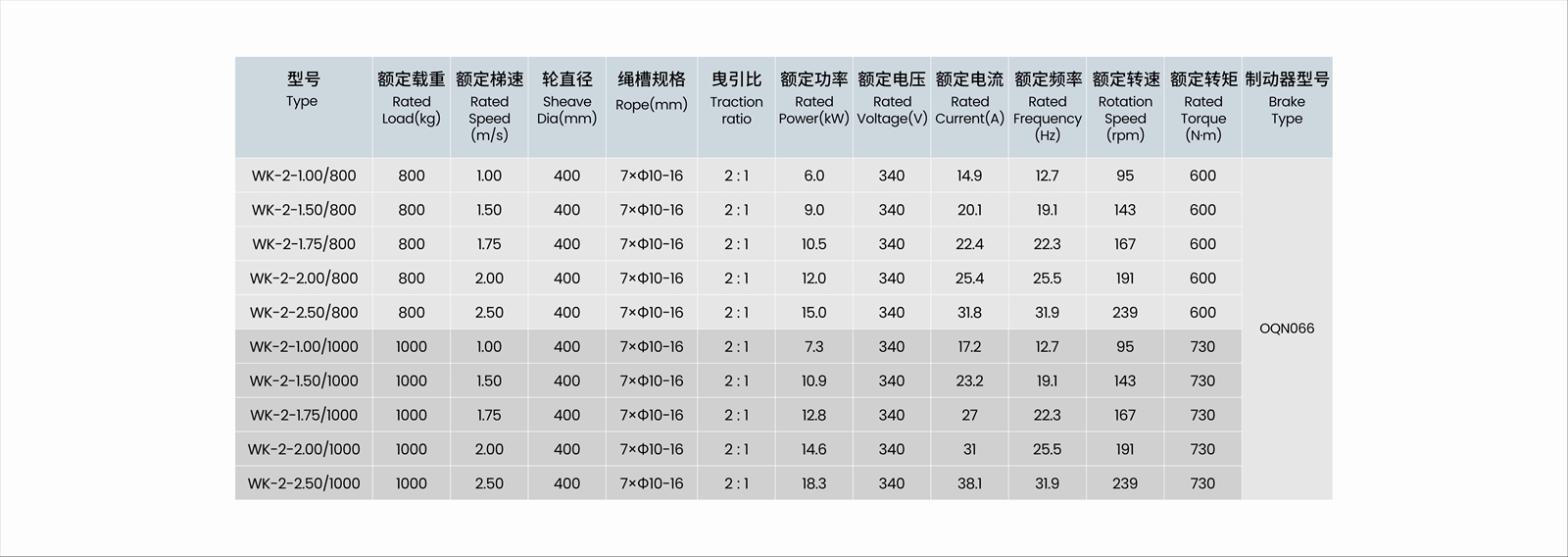

Specification Table
