Vertical WA4 Series Vertical WB4 Series Horizontal WK Series Vertical WF4 Series High-speed WGT Series Freight elevator traction machine WG series Home Elevator Motor Series

Traction machine-Vertical WB4 Series

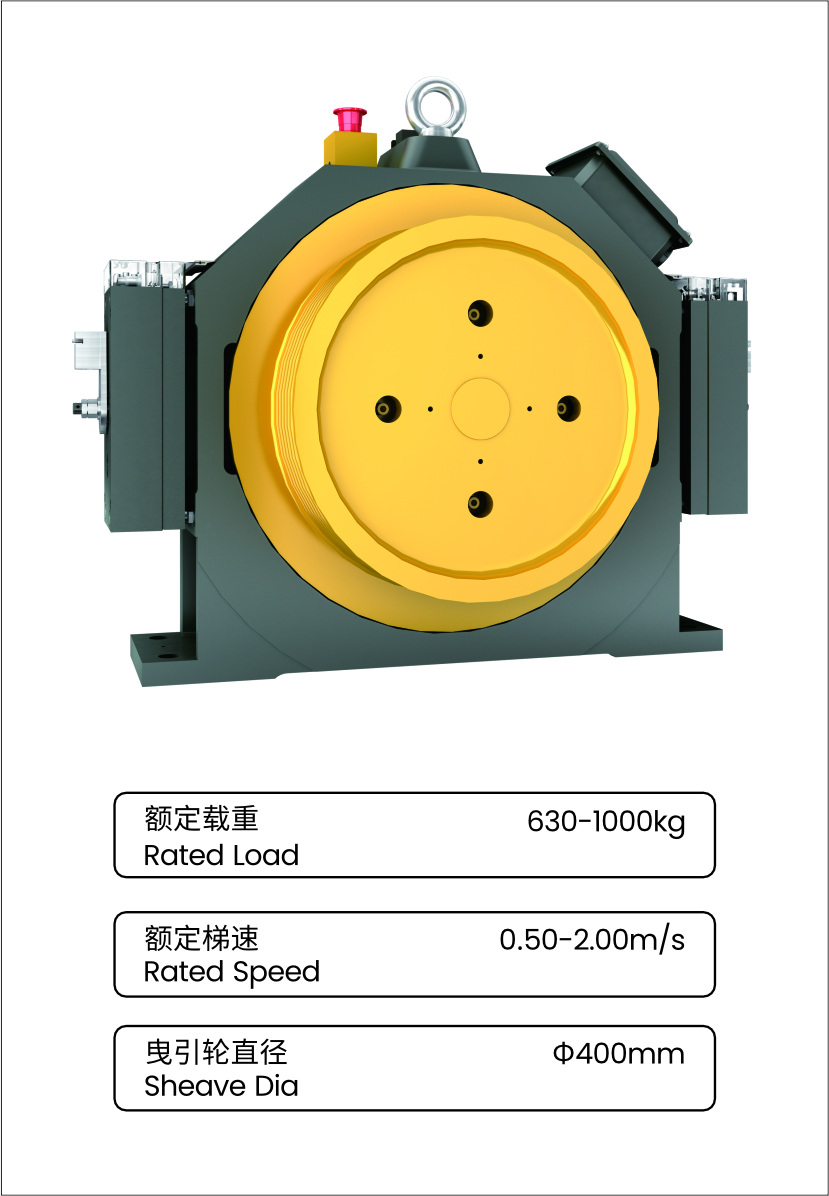

WB4-III (630-1000KG)

WB4-I ( 320-630KG) WB4-II (450-1050KG ) WB4-III (630-1000KG) WB4-IV ( 1350/1600)
Contact Us Download
Maximum radial load

3000N

Estimated weight of traction machine

300~350kg

Startup frequency (times/hour)

180

Insulation level

F

Brake model and quantity

Two DQN080 Brakes

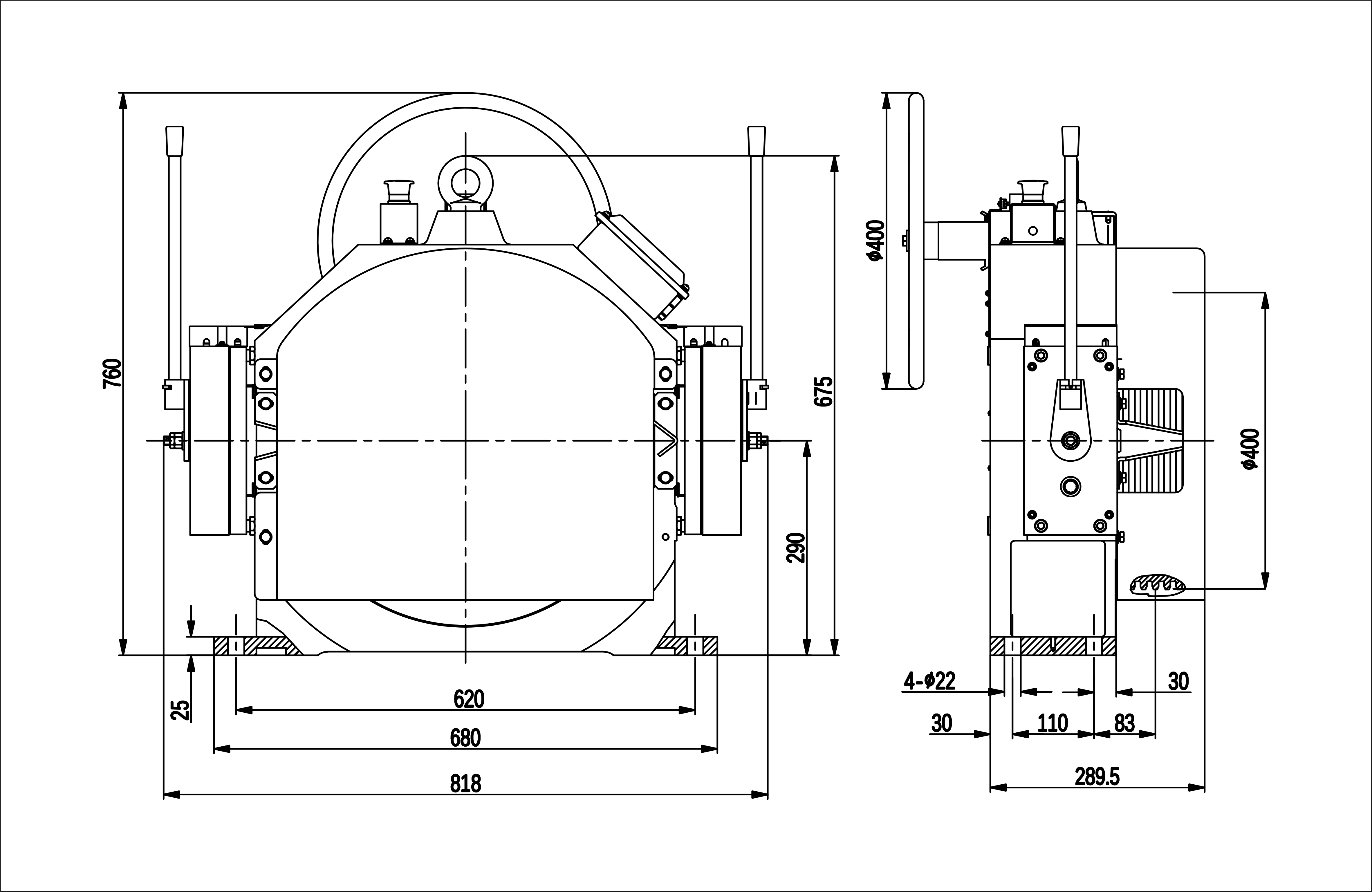

Appearance dimension diagram

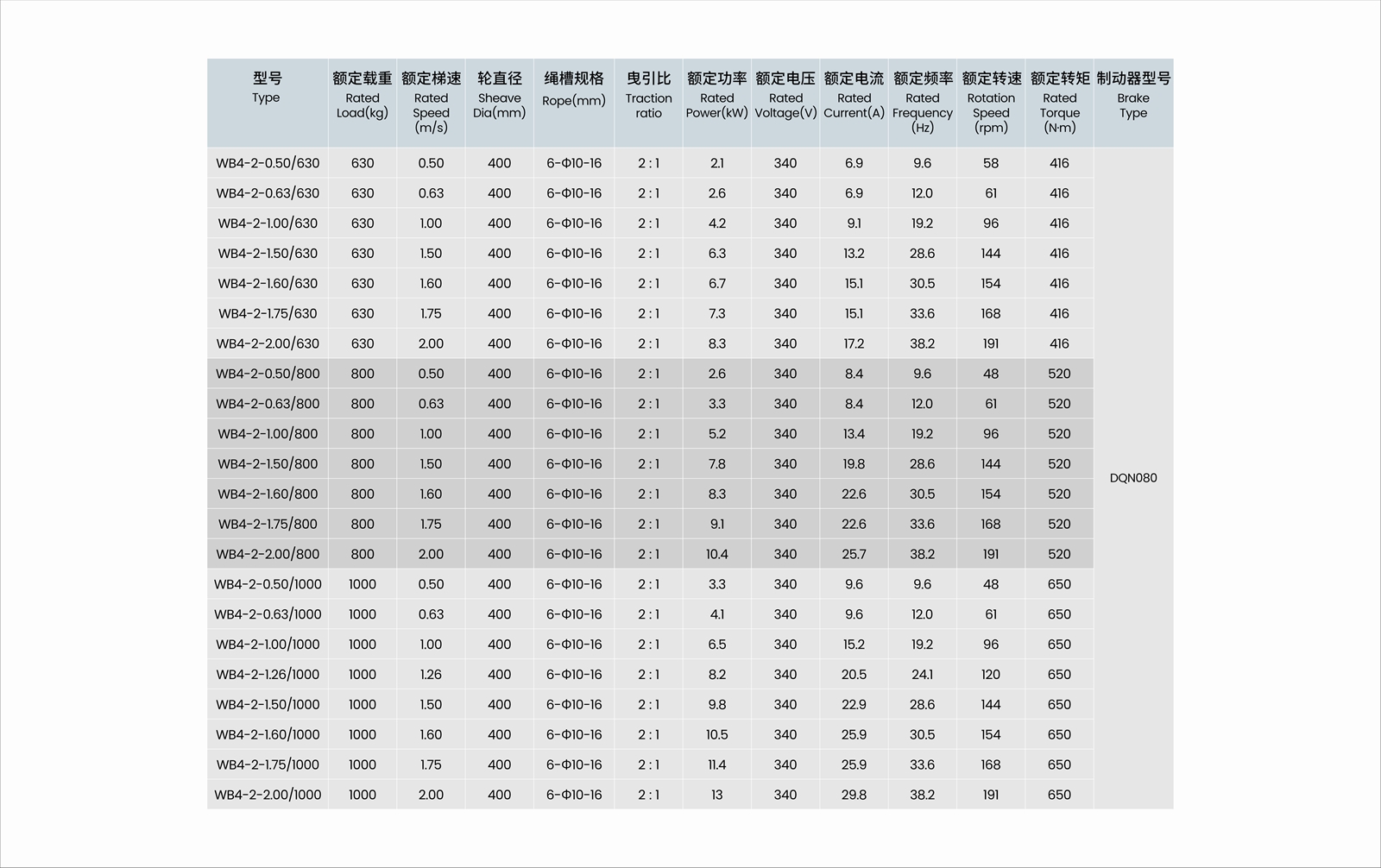

Specification Table
