Traction machine-Vertical WB4 Series

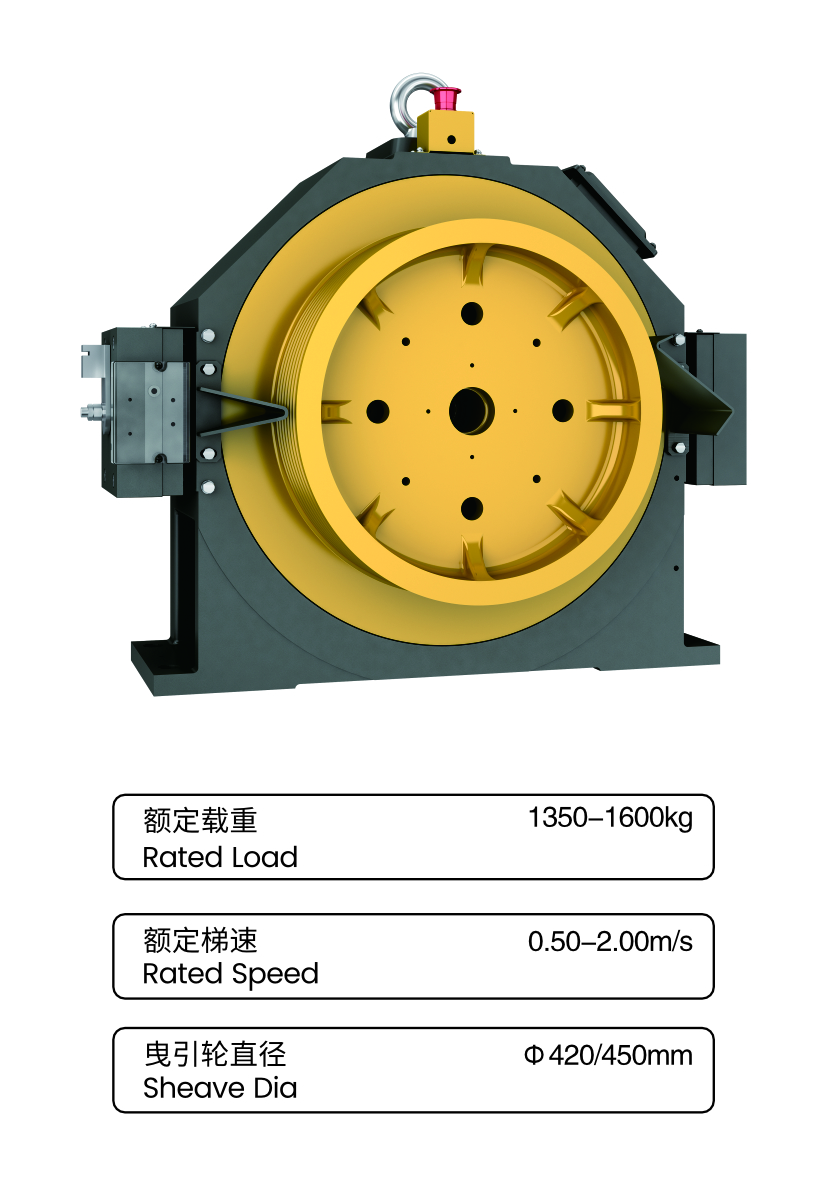

WB4-IV ( 1350/1600)

WB4-I ( 320-630KG) WB4-II (450-1050KG ) WB4-III (630-1000KG) WB4-IV ( 1350/1600)
Contact Us Download
Maximum radial load

3700N

Estimated weight of traction machine

520kg

Startup frequency (times/hour)

180

Insulation level

F

Brake model and quantity

Two DQN090 Brakes

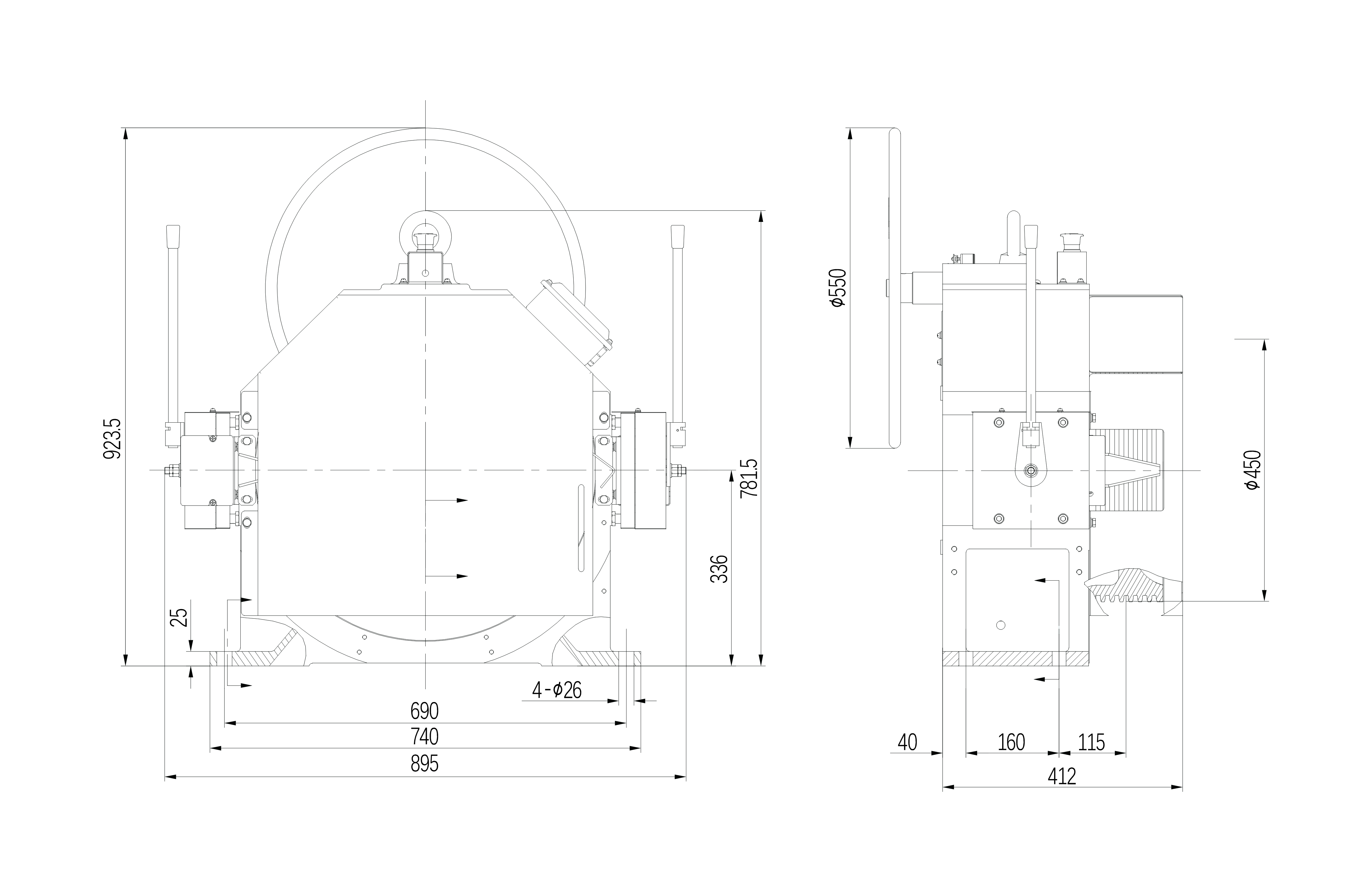

Appearance dimension diagram

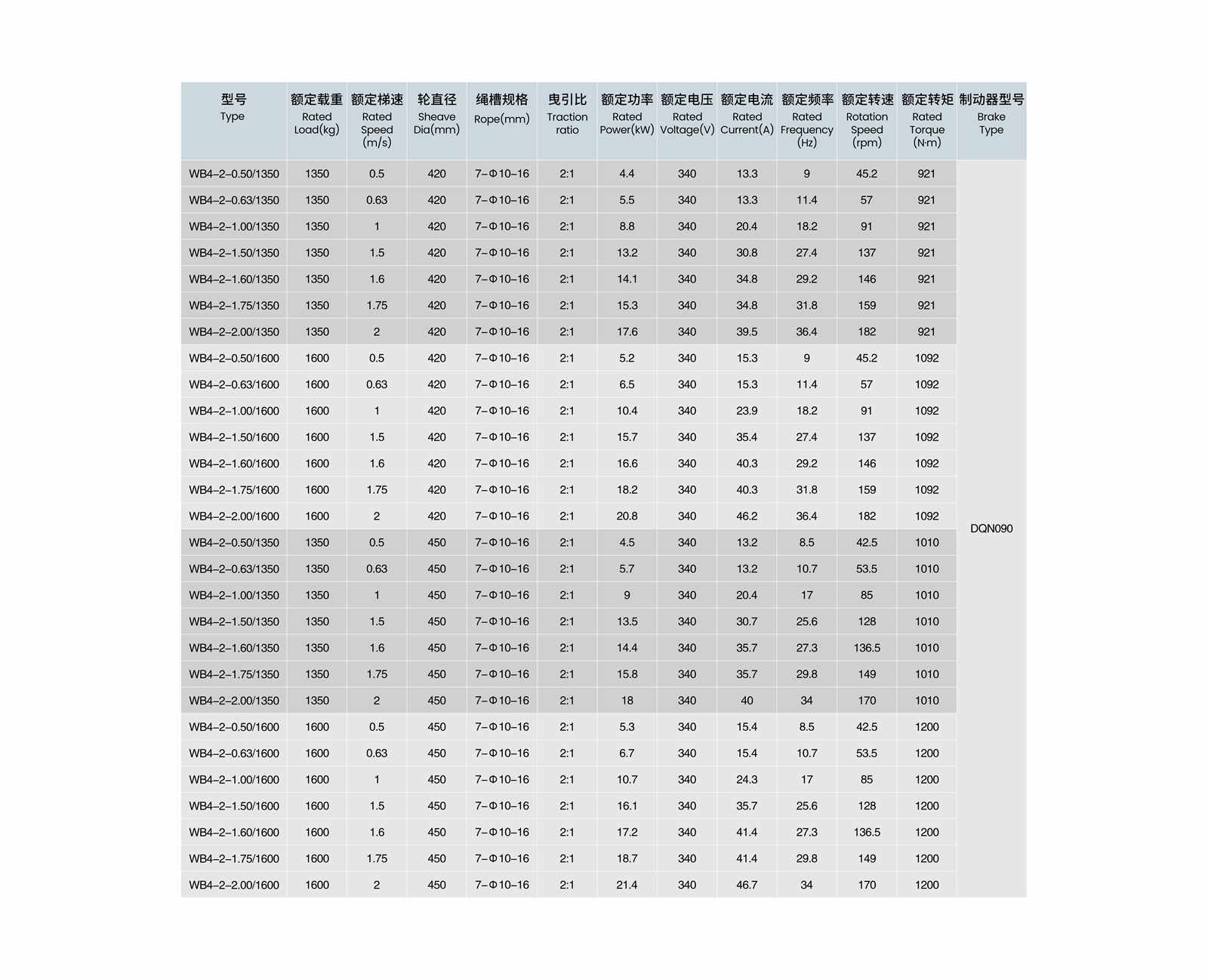

Specification Table
